Migrating from Server / Data Center

What changed, what was removed, and how to migrate your signature data.

This page is for teams moving from the legacy Confluence Server/DC plugin to the Confluence Cloud app.

What stays the same

The core signing experience is unchanged:

  • Users sign with one click; signatures are permanent and cannot be revoked
  • Named signers and signer groups
  • Maximum signatures limit
  • Visibility limit with "Show more" button
  • Signature visibility controls (always, if signatory, if signed)
  • Markdown contract content
  • Content integrity - each contract version is identified by a SHA-256 hash of its title and body. Changing the content starts a new signing round.
  • English, German, French, and Japanese UI

What has been removed

Feature Reason
Protected content (hidden child page revealed on signing) The Forge platform cannot grant page-level permissions programmatically
Panel toggle (panel=true/false) The Cloud macro always renders with a panel; the toggle has no equivalent
Email notifications on sign (automatic emails to configured users) Forge apps cannot send email via SMTP
In-app notifications (WorkBox) Already removed in Confluence 9.x; no equivalent in Cloud
HTML export endpoint Not yet available; planned for a future release

The email list export REST endpoint (/rest/signature/1.0/emails) is replaced by the built-in Email signers / Email pending buttons in the macro.

Configuration parameter changes

Re-create your macros using the new parameter names and formats:

Server parameter Cloud equivalent Notes
title panelTitle Renamed
signers signers Server used usernames; Cloud uses Atlassian account IDs
signerGroups signerGroups Server used group names; Cloud uses group IDs (UUIDs)
inheritSigners (enum) inheritViewers + inheritEditors (two booleans) "readers only" -> inheritViewers=true. "writers only" -> inheritEditors=true. "readers and writers" -> both true.
maxSignatures: -1 leave maxSignatures empty -1 is not valid in Cloud; empty means unlimited
visibilityLimit: -1 leave visibilityLimit empty Same as above
signaturesVisible: always signaturesVisible: ALWAYS Casing changed (uppercase in Cloud)
pendingVisible: always pendingVisible: ALWAYS Same
notified - Dropped; no email notifications
panel - Dropped; always on
protectedContent - Dropped; feature not available

Finding group IDs

Atlassian group IDs are UUIDs, not the display names you may have used on Server. Find them in Atlassian Admin -> Directory -> Groups - click a group to see its ID in the URL or details panel.

Finding account IDs

User account IDs can be found via the Atlassian Admin user list or via the Confluence REST API.

Petition mode

On Server, petition mode (any user can sign) was activated by setting signerGroups="*".

On Cloud, petition mode is automatic: if you configure no named signers, no groups, and no permission inheritance, any logged-in user who can view the page can sign. The configuration panel shows a notice when petition mode is active.

Petition mode behavior change

Config Server behavior Cloud behavior
No signers, no groups, no inheritance Locked (nobody can sign) Petition mode (anyone can sign)
signerGroups = "*" Petition mode Petition mode

The macro conversion tool detects locked Server macros and sets maxSignatures=0 to preserve the locked behavior in Cloud. You can manually edit the macro config to re-enable signing if needed.

Migrating existing signature data

Signature history from Server can be migrated to Cloud using the Atlassian Cloud Migration Assistant (CMA). The migration happens in three phases:

  1. CMA migration — Migrates spaces, users, pages, and exports signature data from Bandana to Forge SQL
  2. Macro format conversion — Converts migrated macro storage format from Server XML to Forge ADF
  3. Verification — Check that signatures display correctly on Cloud

Prerequisites

Server/DC side:

  • Confluence Server 7.x+ or Data Center
  • Digital Signature plugin v9.2.0+ installed (contains the CMA migration listener)
  • Admin access to Confluence Server

Cloud side:

  • Confluence Cloud site with the Digital Signature for Confluence app installed via Atlassian Marketplace
  • Admin access to the Cloud site

Step 1: Enable CMA dev mode

CMA dev mode is required because the Server plugin version is not published on the Marketplace. Dev mode bypasses the version check and includes any app that implements the migration listener.

On the Server instance:

  1. Go to Administration -> Developer Features (/admin/darkfeatures.action)
  2. Add dark feature: migration-assistant.app-migration.dev-mode
  3. Click Submit

Remove dev mode after migration is complete.

Step 2: Run CMA migration

  1. Go to Administration -> Migration Assistant (/admin/migration.action)
  2. Click Create new migration
  3. Configure:
    • Name: descriptive name
    • Stage: Production
    • Destination: your Cloud site
  4. Select what to migrate:
    • Spaces: Select the spaces containing signature macros
    • Users and groups: Select all (required for user mapping)
    • Apps: Skip — dev mode auto-includes the digital-signature app
  5. Run pre-flight checks, review, and Run now

During migration, the Server plugin exports all signature data as compressed JSONL. The Forge app receives this data, maps Server page IDs and usernames to their Cloud equivalents, and inserts the contracts and signatures into Forge SQL.

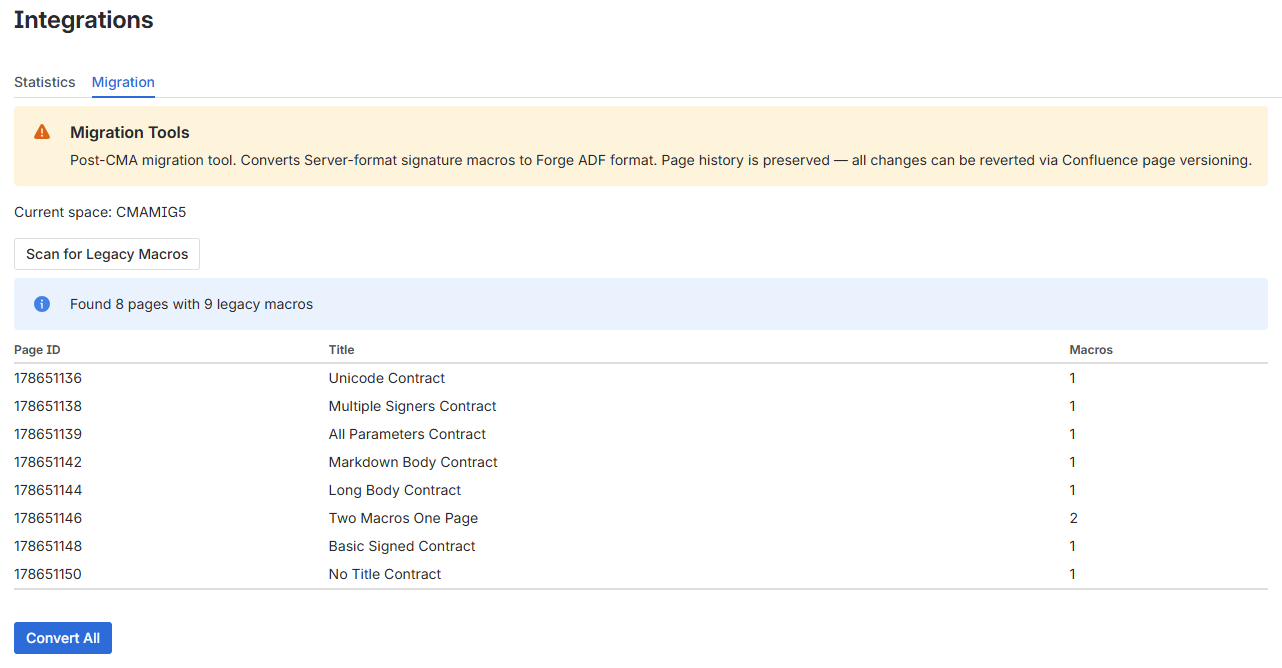

Step 3: Convert macro format

Migrated pages have Server-format XML that Forge can't render. The macro format must be converted to Forge ADF.

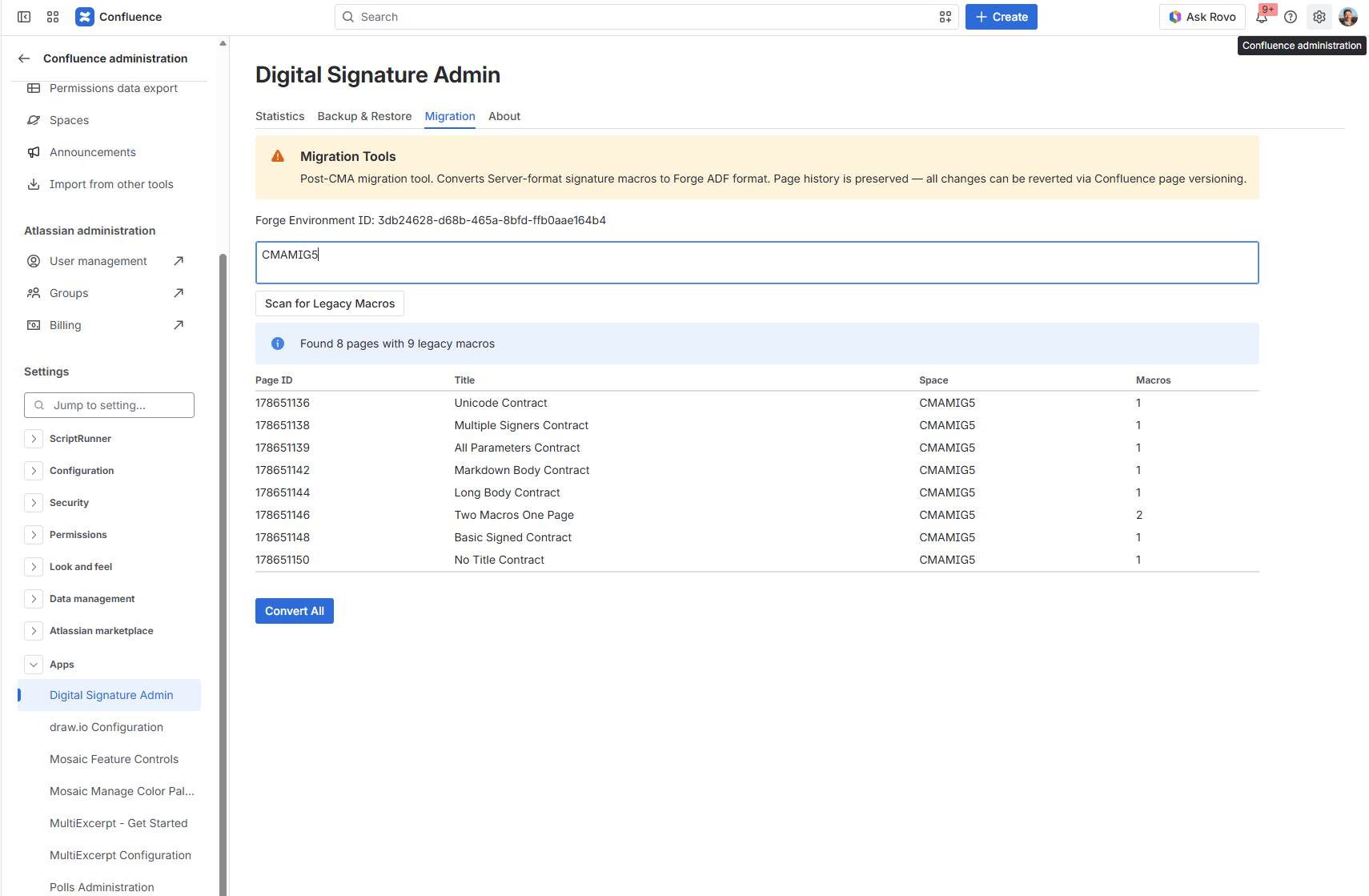

The Forge app includes a built-in migration tool on the admin settings page:

  1. Open the app's Admin Settings page in Confluence Cloud (Confluence Settings -> Digital Signature Admin)
  2. Go to the Migration tab
  3. Optionally enter a space key to limit the scan to one space (leave empty for all spaces)
  4. Click Scan for Legacy Macros — this is read-only and shows a table of pages with unconverted macros
  5. Review the results, then click Convert All
  6. A progress bar tracks the conversion. Each page is updated individually — partial failures don't affect already-converted pages
  7. Reload any converted page to verify the macro renders correctly

The conversion is safe and reversible: every page update creates a new version, so you can revert via Confluence page history if needed. No signature data is modified — only the macro XML in the page body changes.

Step 4: Verify

  1. Check pages — Open migrated pages on Cloud. Signature macros should render with the contract title and body, signed signatures with date and Cloud username, and correct signing permissions (locked macros should not allow new signatures).

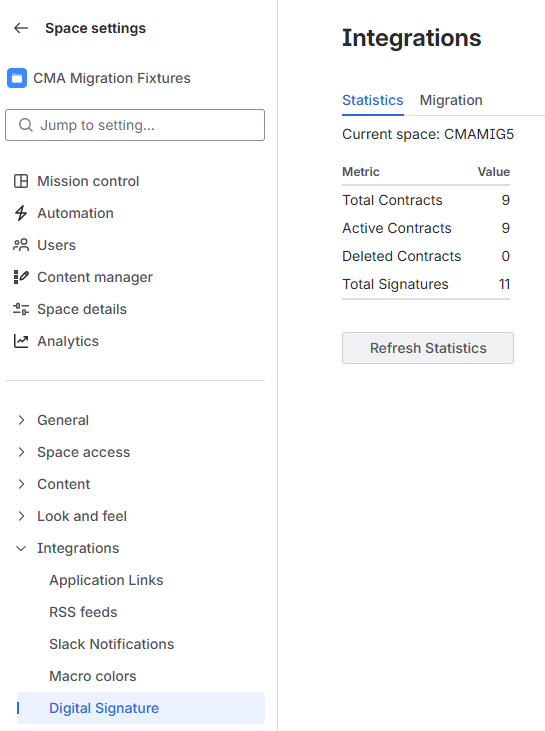

  2. Check statistics — On the admin settings page, the Statistics tab shows contract and signature counts. These should match your Server data (minus any unmapped users).

  3. Check for unmapped users — If some Server users don't have matching Cloud accounts (different email or not migrated), their signatures are skipped during import. Check Forge logs for details.

Troubleshooting

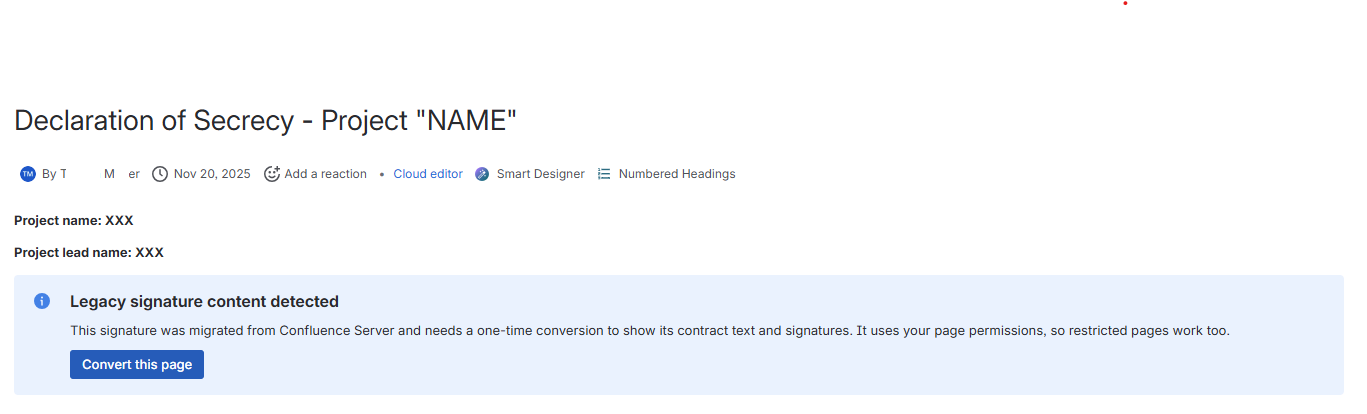

"Error loading the extension!" on migrated pages The macro format hasn't been converted yet. Use the Migration tab in Admin Settings (Step 3).

Signatures don't display (macro renders but empty) Contract hashes may not match. Check Forge logs for page ID mapping issues. Re-trigger the app migration from the CMA UI.

"0 apps will be migrated" Dev mode is not enabled. See Step 1.

To be notified of updates, watch the GitHub repository or open an issue there.
